ALESA MONTI FT 45 TG Boring machine

Show in original language

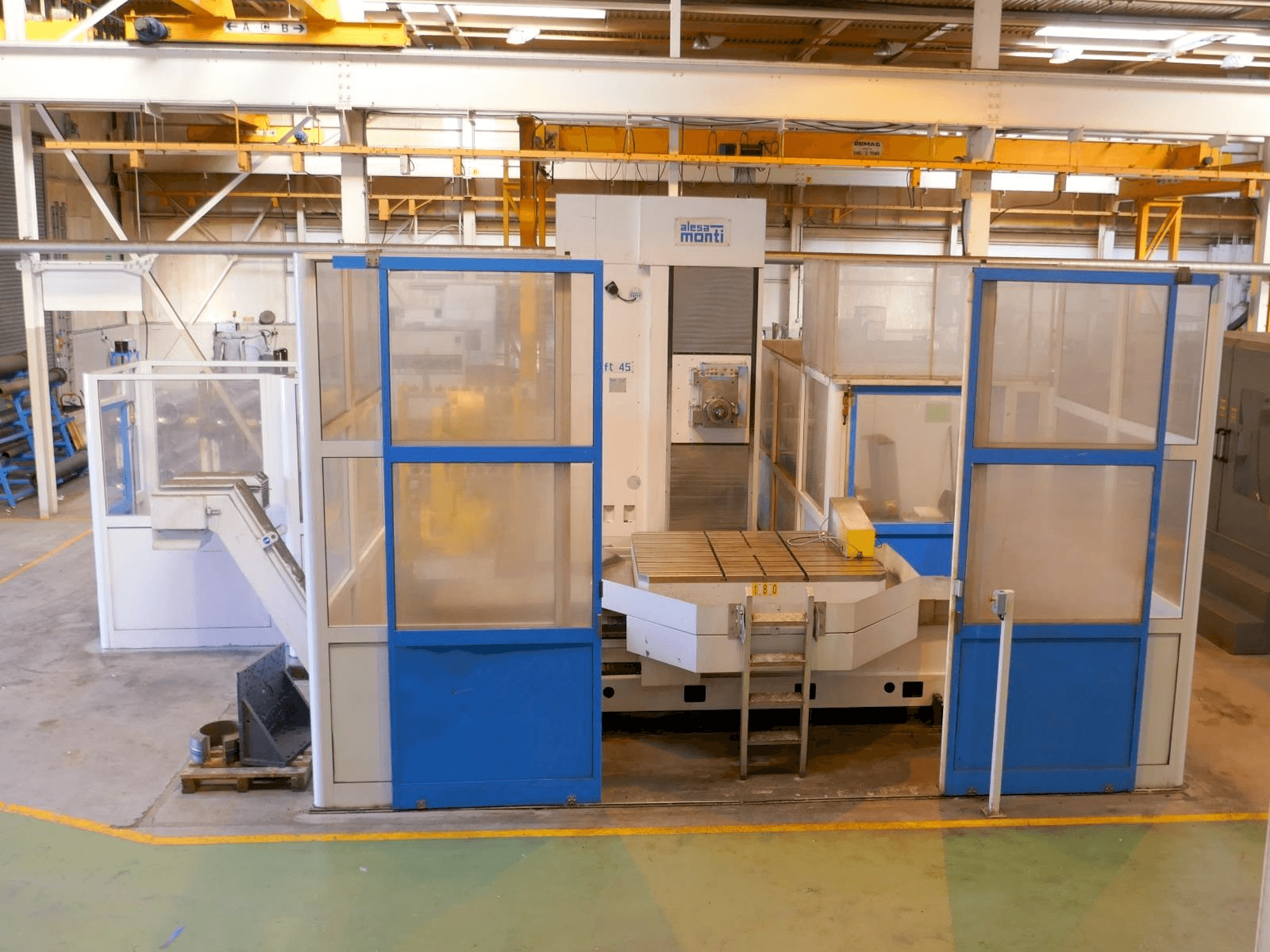

This ALESA MONTI FT 45 TG Boring machine was made in the year 2011 in Italy. It is equipped with a HEIDENHAIN iTNC530 control unit. The machine has a spindle speed of 0 - 4000 rpm.

Overview

brand: ALESA MONTI
year: 2011
MODEL: FT 45 TG
application type: Other Machine Tools
Location: United Kingdom
machine type: Boring Machine (Metal)
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - ALESA MONTI FT 45 TG

Control Unit

Model: iTNC530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 0 - 4000 1/MIN
Spindle motor power: 26 kW

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 1200 mm
W-Axis Movement: 800 mm
B-AXIS Movement: 0.001 degree MM

Table

Outer length: 1300 mm
Outer width: 1700 mm
Table load: 6000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working rotation: 0. 1 – 2 rpm
- - Taper: iso din 50
- - Milling spindle dia: 128. 57mm
- - Feeds x, y, z, w: 0 – 15,000 mm/min
- - Rapid: 20,000 mm/min
- - Fanuc robotized tool changer: number 40, max. Weight 30 kg, weight 26,000 kg
- - 20 bar through spindle
- - Chip conveyor
- - Renishaw touch probe

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
