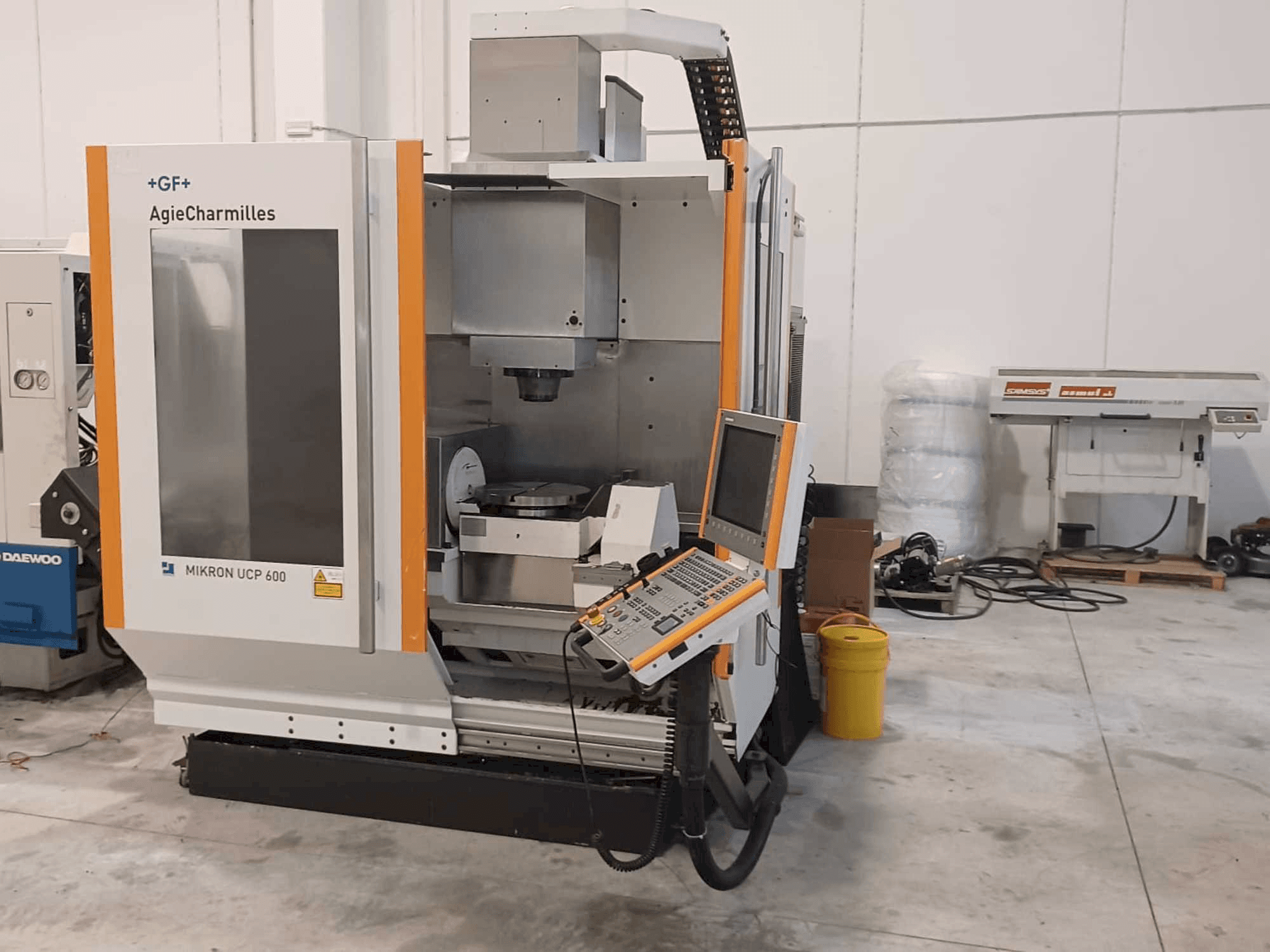

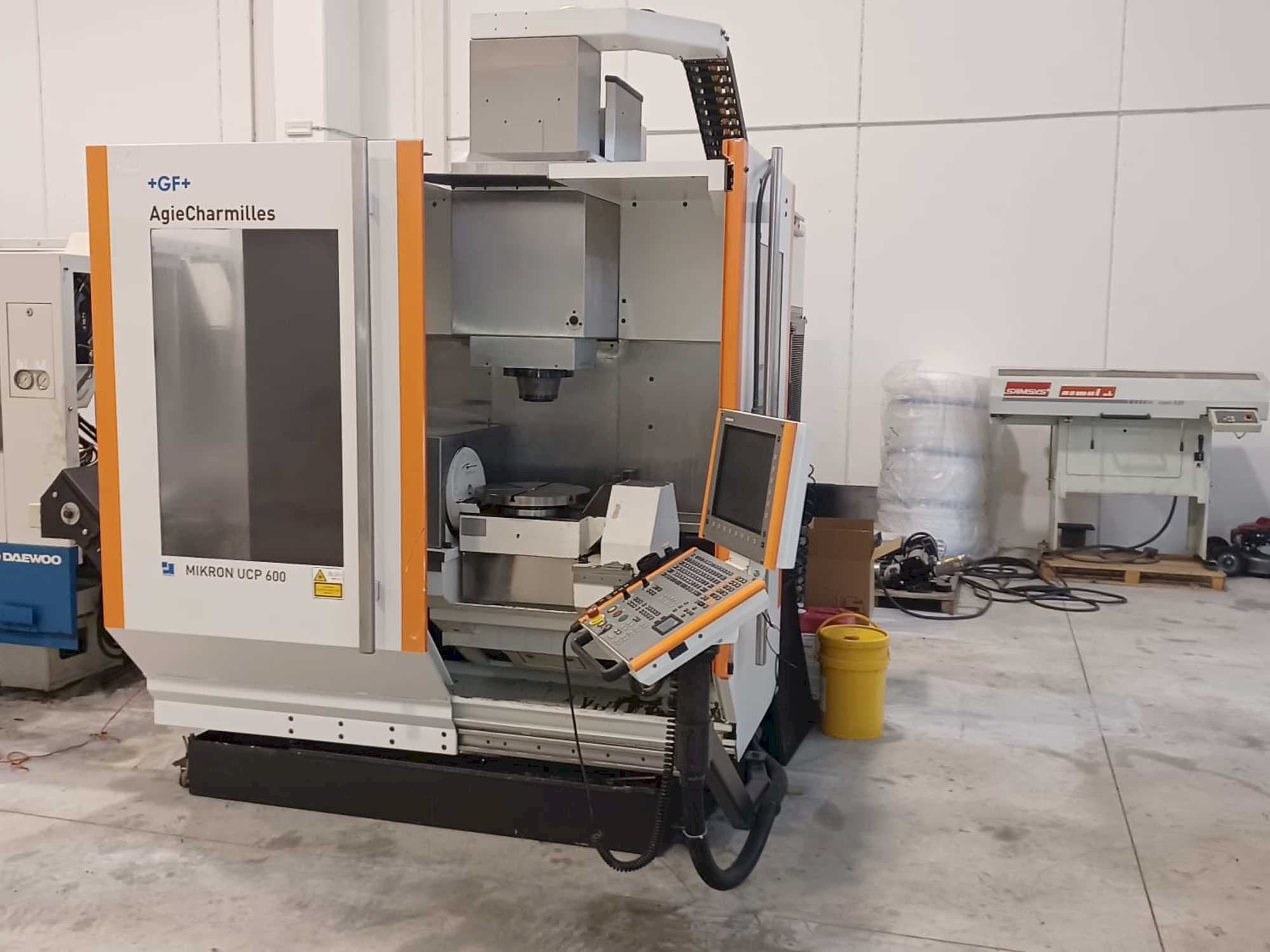

AgieCharmilles Mikron UCP 600 vertical machine center

Show in original language

This AgieCharmilles Mikron UCP 600 vertical machine center was made in the year 2008 in Switzerland and has 30791 hours, of which 12668 are spindle hours. It is equipped with a Heidenhain iTNC 530 control unit and has 5 axis. The machine has a spindle speed of 20000 rpm, all the documentation is available, and is in perfect condition.

Overview

brand: AgieCharmilles
year: 2008
MODEL: Mikron UCP 600
production hours: 30791
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - AgieCharmilles Mikron UCP 600

General Data

Machine weight: 6100 kg

Control Unit

Model: i TNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20000 1/MIN
Spindle motor power: 23/30 KW
Number of axis: 5

Movement

X-AXIS Movement: 600 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 450 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 450 mm
Z-AXIS Rapid traverse: 36 m/min

Table

Table load: 200 kg

Additional equipment

- Chip conveyor
- cooling through spindle
- probe

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Hsk-a63 spindle
- - Table dimensions mm 400 dia
- - Table inclination + 122° / - 100°
- - Rotation ± 360°
- - Tool changer: tool magazine with capacity 30 pos.
- - Max tool weight 6 kg
- - Max. Tool size diam/lung 90/250 (with free ad. Seats diam 130mm)
Qualitative Machine Benefits:
- - All the documentation is available
- - The machine is in perfect condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
