AgieCharmilles - CUT 30PES-EDM-AGI-2012-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used AgieCharmilles CUT 30P Erosion Machine

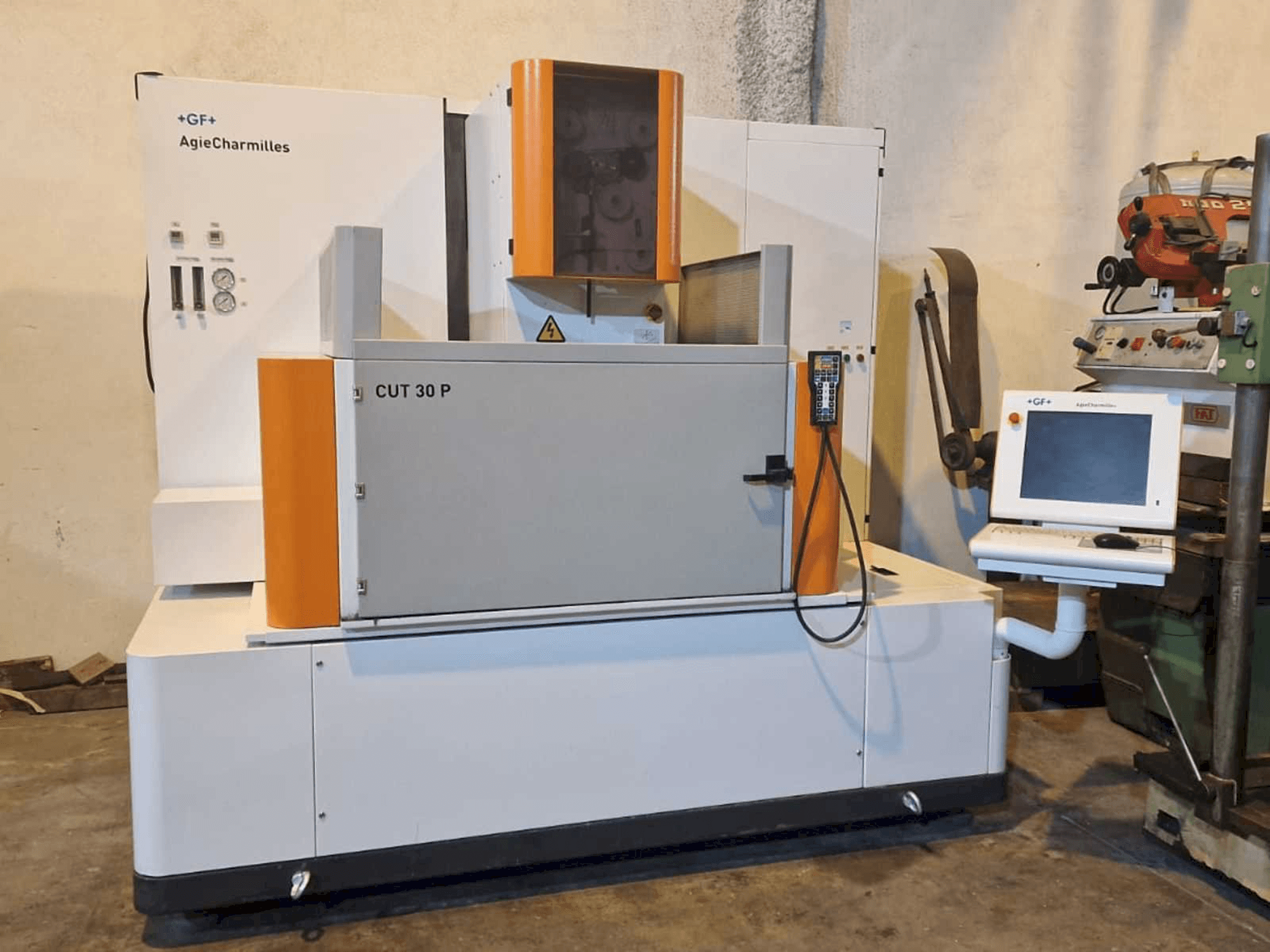

This AgieCharmilles CUT 30P Erosion machine was manufactured in the year 2012 in China. It is equipped with a +GF+ AgieCharmilles control unit.
Overview
- brand: AgieCharmilles
- year: 2012
- MODEL: CUT 30P
- application type: EDM
- Location: Spain
- machine type: Wire EDM Machine
- availability: Sold
Technical Information - AgieCharmilles CUT 30P
General Data
- Measurements width: 3100 MM
- Measurements depth: 2800 MM
- Measurements height: 2325 MM
- Machine weight: 4400 KG
Movement
- X-AXIS Movement: 600 MM
- Y-AXIS Movement: 400 MM
- Z-AXIS Movement: 350 MM
- U/V Movement: +- 50 MM
Workpiece
- Workpiece weight: 454 KG
Table
- Outer length: 950 MM
- Outer width: 630 MM
- Distance between: 1060 MM
Media
- Main electronic connection: 380 V / 50 HZ
- Power consumption: 9 KVA
- Air pressure: 6-9 BAR
Additional Information
- Qualitative Machine Benefits:
- - Automatic drop door
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
