➤ Used AgieCharmilles CUT 300 For sale | gindumac.com

Show in original language

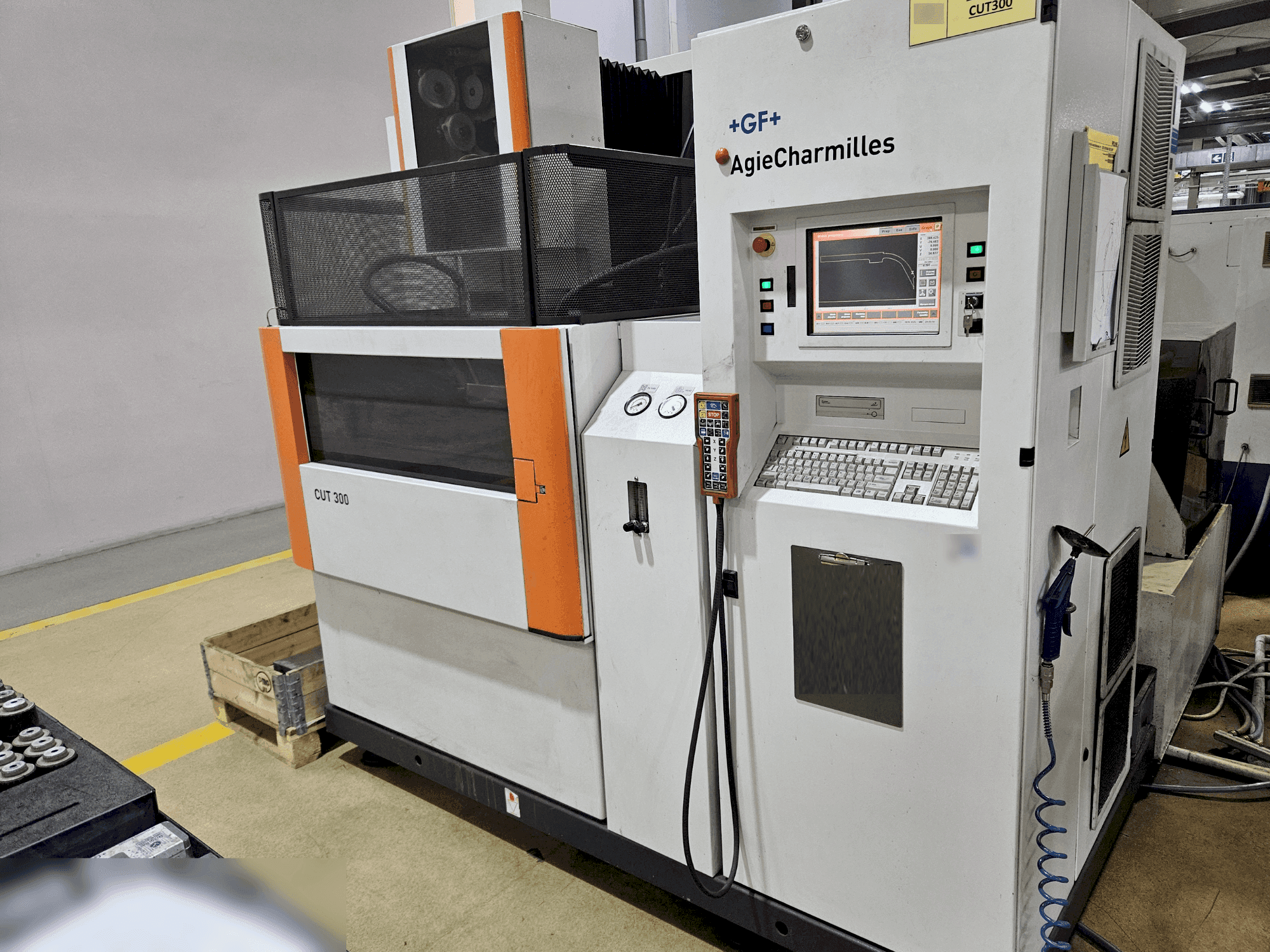

This 5-axis AgieCharmilles CUT 300 was manufactured in 2012 and is a robust erosion machine. It features a large workpiece capacity with dimensions up to 1200 mm in length, 700 mm in width, and 400 mm in height, supporting weights up to 1500 kg. The machine dimensions are 2600.0 × 2540.0 × 2240.0 mm, and it weighs 3300 kg. For more information about this erosion machine, please reach out to us.

Overview

brand: AgieCharmilles
year: 2012
MODEL: CUT 300
production hours: 34461
application type: EDM
Location: Poland
machine type: Wire EDM Machine
availability: Sold

Technical Information - AgieCharmilles CUT 300

General Data

Measurements width: 2540 mm
Measurements depth: 2600 mm
Measurements height: 2240 mm
Machine weight: 3300 kg

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 400 mm
U-Axis Movement: 550 mm
V-AXIS Movement: 350 mm

Workpiece

Workpiece x: 1200 mm
Workpiece y: 700 mm
Workpiece z: 400 mm
Workpiece weight: 1500 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Worktank dimensions: 900 mm (length) x 600 mm (width).
- - 5-axis capability, large workpiece handling capacity.
Qualitative Machine Benefits:
- - High precision and consistent machining results.

Extra information

- Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
