AGIE Mondo 20 Star Erosion Machine

Show in original language

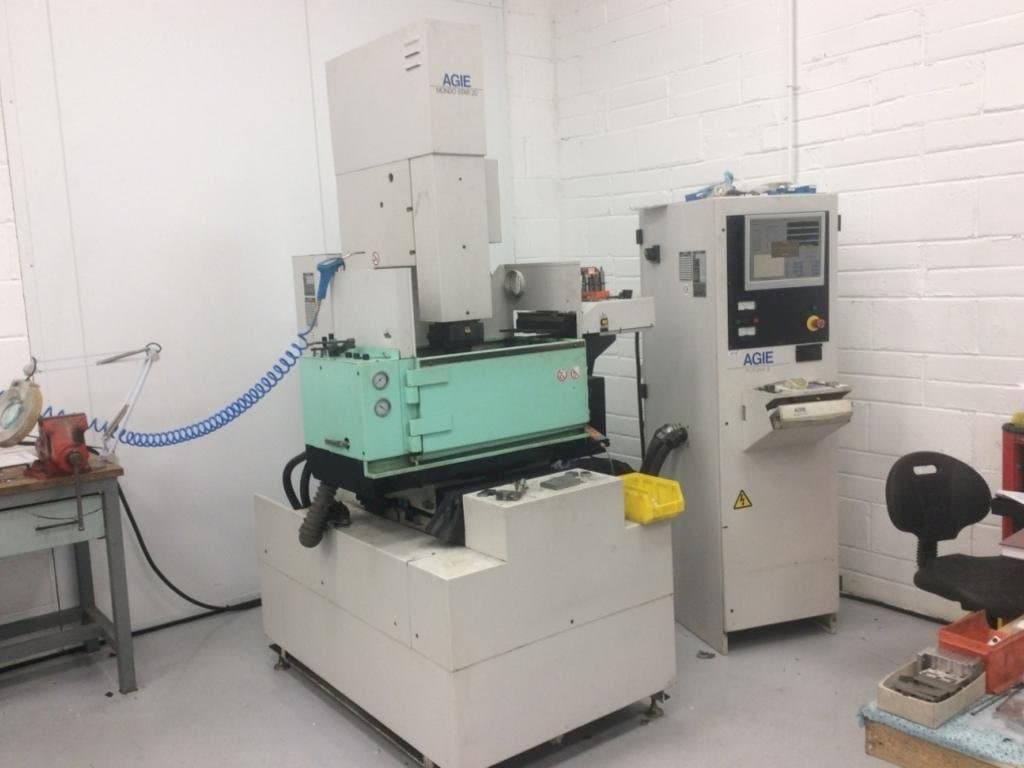

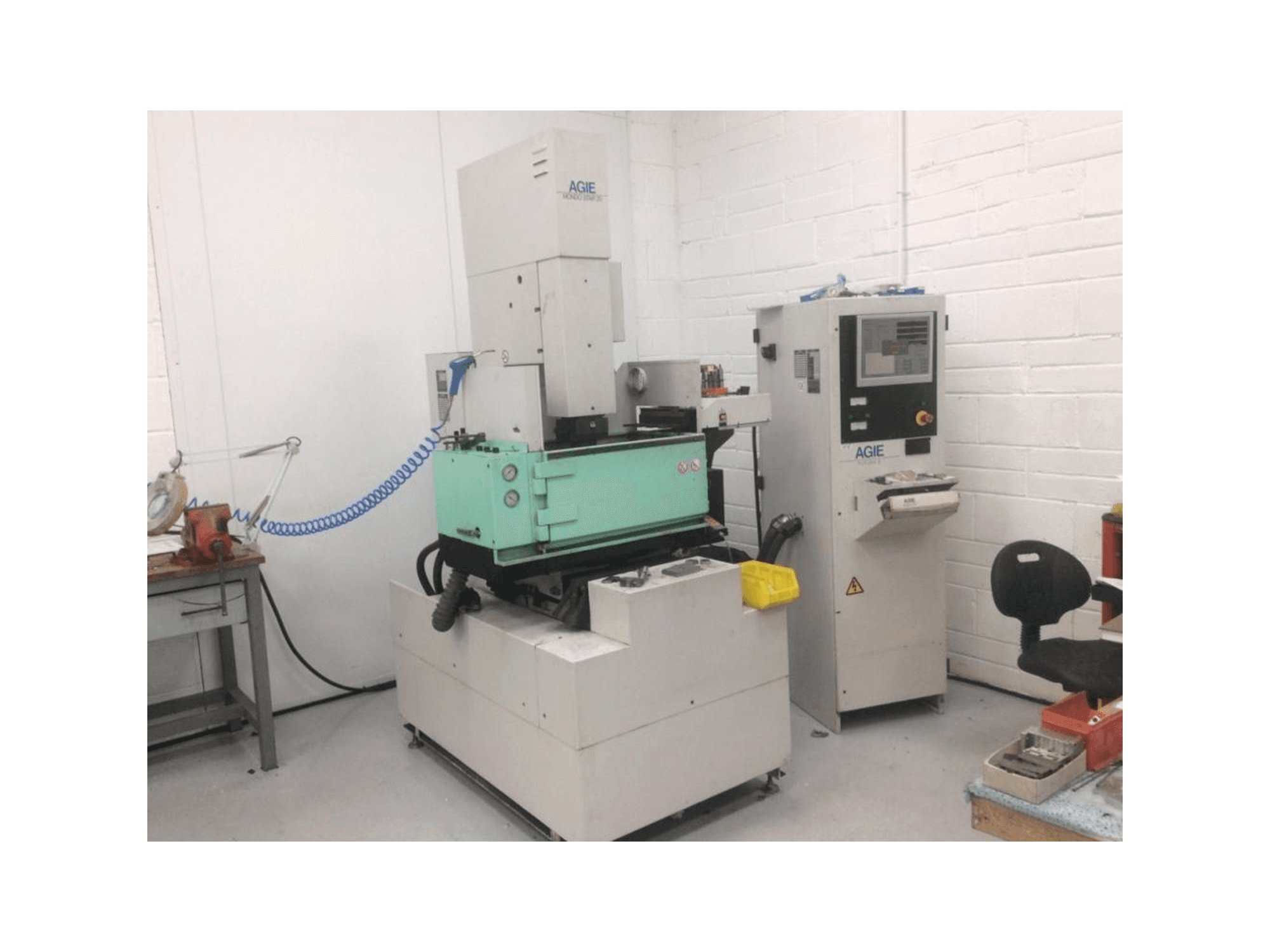

This AGIE Mondo 20 Star Erosion Machine was built in the year 1996 in the United States. It is equipped with an Agie Futura V control unit. This machine includes several pieces of additional equipment: I/O module assembly, heat exchanger, filter, regulator, lubrication assembly, and a tool changer assembly.

Overview

brand: AGIE
year: 1996
MODEL: Mondo 20 Star
application type: EDM
Location: Ireland
machine type: Wire EDM Machine
availability: Sold
control unit brand: AGIE

Technical Information - AGIE Mondo 20 Star

General Data

Measurements width: 1330 mm
Measurements depth: 1555 mm
Measurements height: 2360 mm
Machine weight: 1265 kg

Control Unit

Model: Futura V
CNC main language: English
Brand: AGIE

Main drive

Working current: 64 A

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 250 mm
C-AXIS Movement: 360 Degrees MM

Workpiece

Workpiece x: 630 mm
Workpiece y: 400 mm
Workpiece z: 165 mm
Workpiece weight: 200 kg

Table

Outer length: 400 mm
Outer width: 300 mm

Media

Main electronic connection: 400 V
Power consumption: 9,9 kVA

Additional equipment

- I/O module assembly
- Heat exchanger
- Filter/Regulator/Lubrication assembly
- C axis assembly
- Tool changer assembly

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Full c axis
- - 4 station auto tool changer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
