AGIE - AGIETRON Compact 2AT-EDM-AGI-1994-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- AGIE AGIETRON Compact 2 Erosion Machine

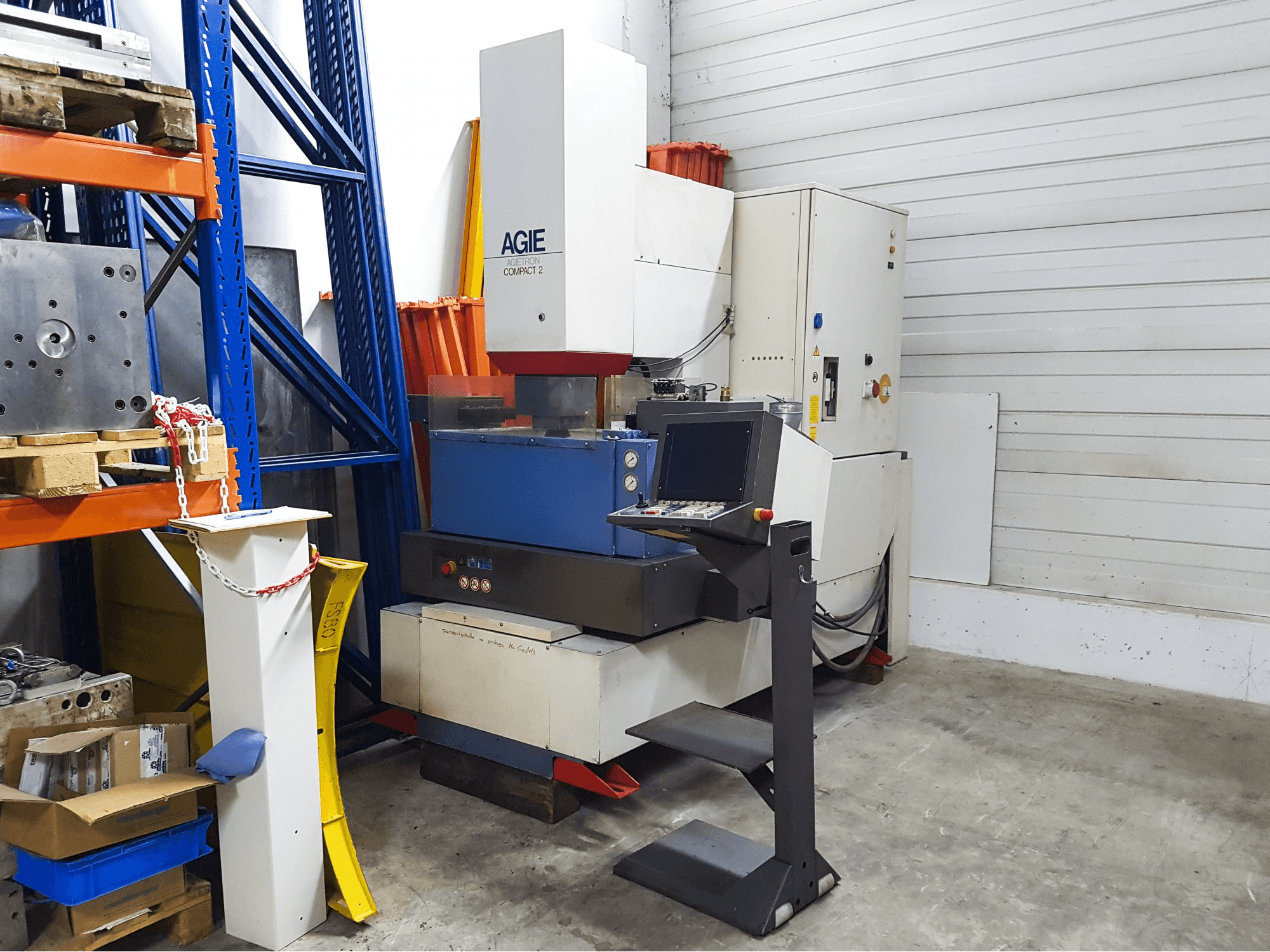

This AGIE AGIETRON Compact 2 Erosion Machine was built in the year 1994 and has worked 65500 hours since then. This machine works on Swiss quality standards with an Agiecom Control unit, and includes several pieces of additional equipment: an Ewora tooling head, 8x Tool holders, a Central crane hook and, upon request, a 200x Blade and 150x Tab set.
Overview
- brand: AGIE
- year: 1994
- MODEL: AGIETRON Compact 2
- production hours: 65500
- application type: EDM
- Location: Austria
- machine type: Die-Sinking EDM Machine
- availability: Sold
- control unit brand: AGIE
Technical Information - AGIE AGIETRON Compact 2
General Data
- Measurements width: 1400 mm
- Measurements depth: 2510 mm
- Measurements height: 2580 mm
- Machine weight: 2757 kg
Control Unit
- Brand: AGIE
Main drive
- Working current: 8.37 / 8.87 A
Movement
- X-AXIS Movement: 350 mm
- Y-AXIS Movement: 250 mm
- Z-AXIS Movement: 350 mm
Workpiece
- Workpiece drm: 810 mm
- Workpiece x: 320 mm
- Workpiece y: 300 mm
- Workpiece weight: 400 kg
Media
- Main electronic connection: 5.8 / 6.15 kVA
Additional equipment
- - Tooling head Ewora
- - 8x Tool holder
- - Central crane hook
- - 200x Blades and 150x Tabs (upon request)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
