- AccuteX AU-860iA Wire EDM

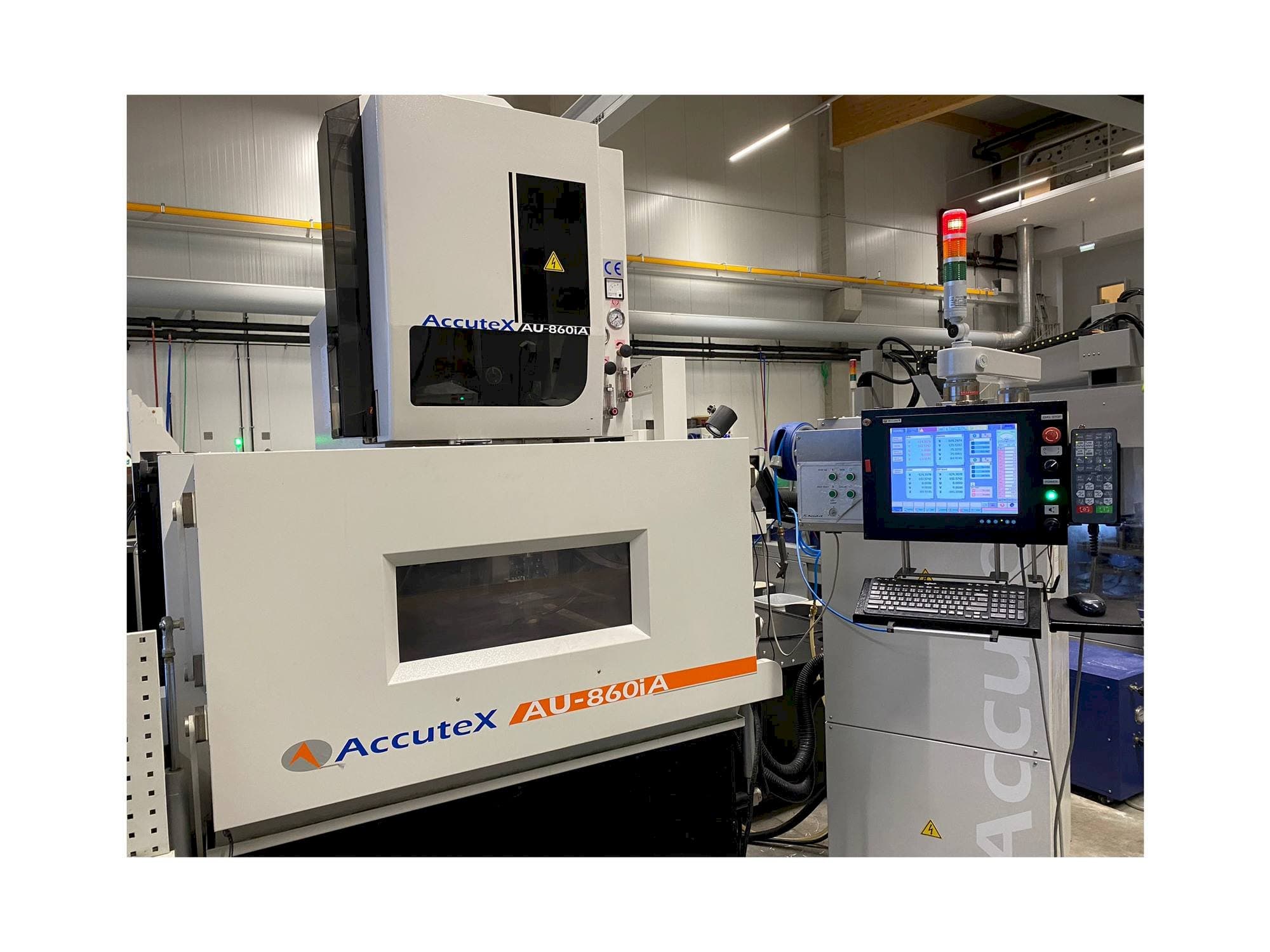

This AccuteX AU-860iA Wire EDM was manufactured in the year 2020. It is equipped with a Windows CE controller control unit. The machine has a standard wire diameter of 0.15 to 0.33 mm.
Overview
- brand: AccuteX
- year: 2020
- MODEL: AU-860iA
- application type: EDM
- Location: Germany
- machine type: Wire EDM Machine
- availability: Sold
Technical Information - AccuteX AU-860iA
General Data
- Measurements width: 3900 mm
- Measurements depth: 3600 mm
- Measurements height: 2740 mm
- Machine weight: 8500 kg
Control Unit
- Model: CE controller
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 600 mm
- V-Axis Movement: 150 mm
- U-Axis Movement: 150 mm
Workpiece
- Workpiece drm over bed: 1330 mm
- Workpiece drm over support: 990 mm
- Workpiece drm: 595 mm
Table
- Table load: 5000 kg
Additional Information
- Technical Machine Benefits:
- - Max. Taper: 21º / 100 mm
- - Standard wire diameter: 0. 15 to 0. 33
- - Wire spools: 16 (din 200) kg
- - Surface quality
- - Collision protection
- - Ra 0,35
- - Automatic wire threading
- - Glass scales in x and y axis
- - Sd master 1 piece
- - Water chill.
- Qualitative Machine Benefits:
- - Ce conformity configuration.
- - Water gun for daily machine maintenance
- - Opt. 3-colour warning light
- - Opt. High pressure water jet
- - Opt. Safety door lock
- - Opt. Transformer (380/400 / 415v> 220v)
- - Opt. Wire changer
- - High pressure jet
- - Wire chopper
- - Safty door interlock
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
